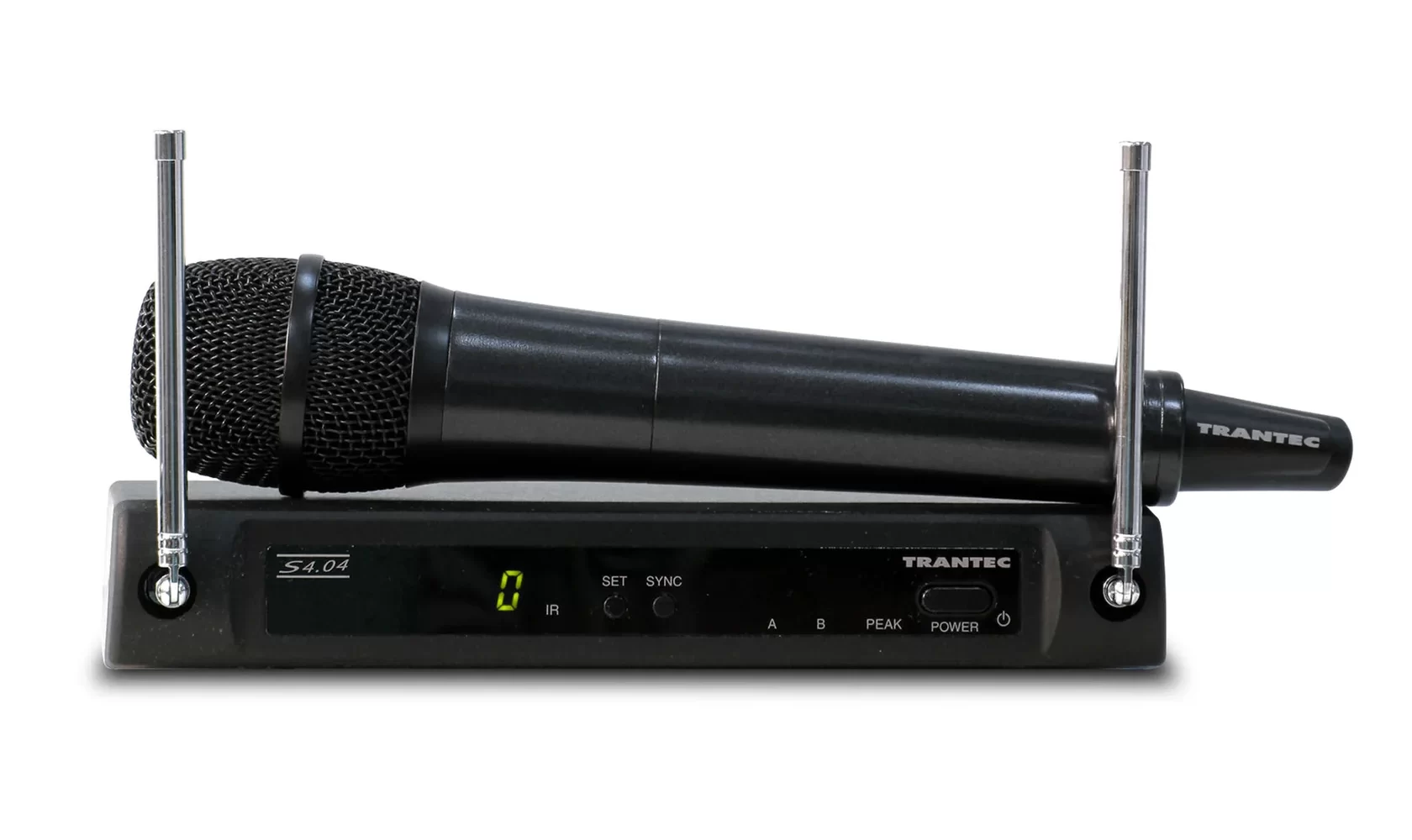

Trantec S4.04H Handheld Microphone System
The Trantec S4.04H (S4.04–HD–EB–GD5) is the best value for money Handheld Wireless System on the market. It is simple to use and rugged enough for all handheld applications including DJ, karaoke, performing artists, speeches, corporate presentations, churches, mosques, synagogues and any other.
- Instruction Manual
- S4.04-RX Wireless UHF Desktop Receiver

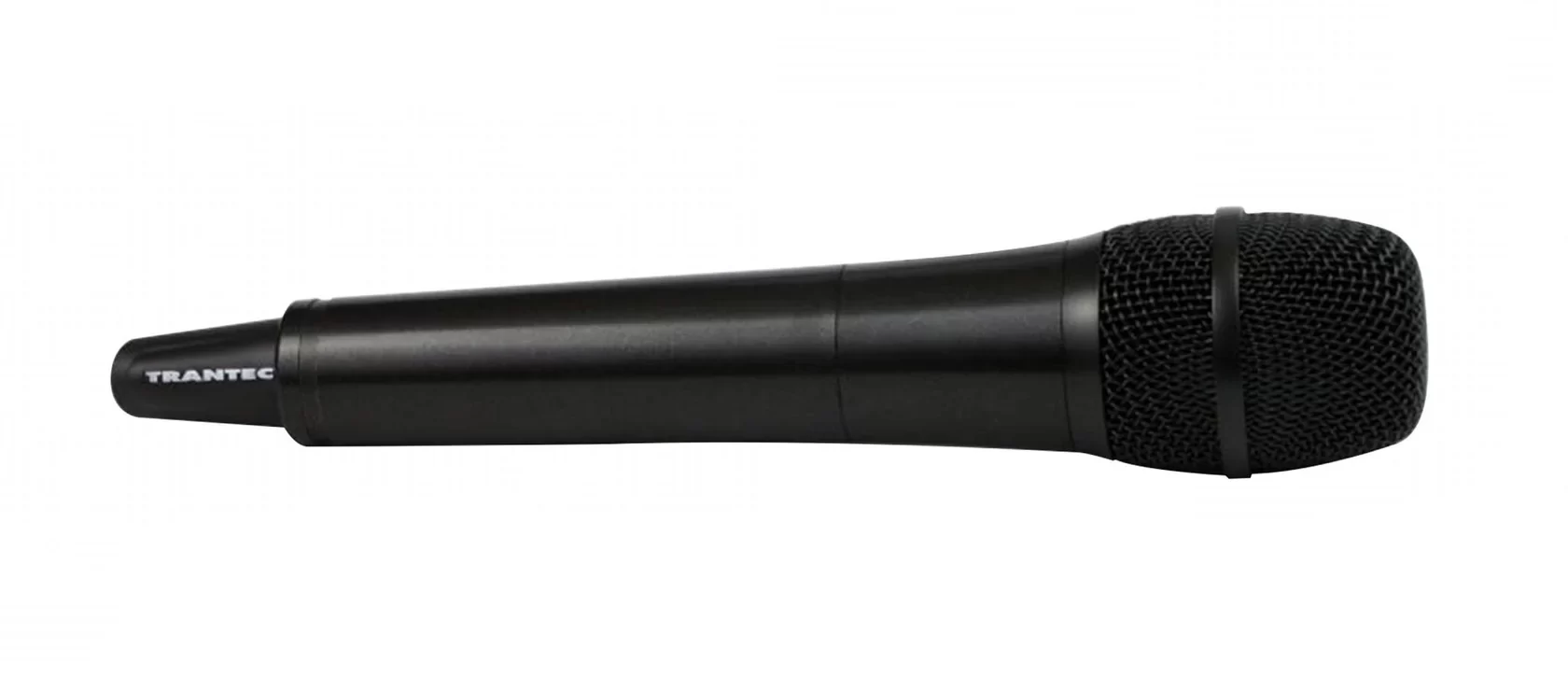

- S4.04-HDX Hand Held Wireless Microphone Transmitter
- Microphone Clip to allow the S4.04-HDX to be used on a Microphone Stand
The unit requires a AA Alkaline Battery, which will provide up to 10 hours of continuous use. Operates on frequencies between 863.000 MHz to 865.000 MHz, which is also known as Channel 70. This range of frequencies are licence free in the UK. The unit can be selected onto 1 of 4 frequencies so up to four systems could be run at the same time.
The system does not come with a lead to connect it to your sound system. The audio output from the receiver is a 3 pin balanced XLR output with a variable output with a maximum level of -20dBu which would normally be used to connect this receiver into a microphone input on your amplifier.
It also has a 6.3mm (1/4″) unbalanced jack socket with a variable output up to a maximum level of +10dBu which would normally be used to connect the unit to a line level or auxiliary input of your sound system. There’s a couple of leads to choose from in the related products below but if you need something special just give us a call and we’ll help you through the process.
