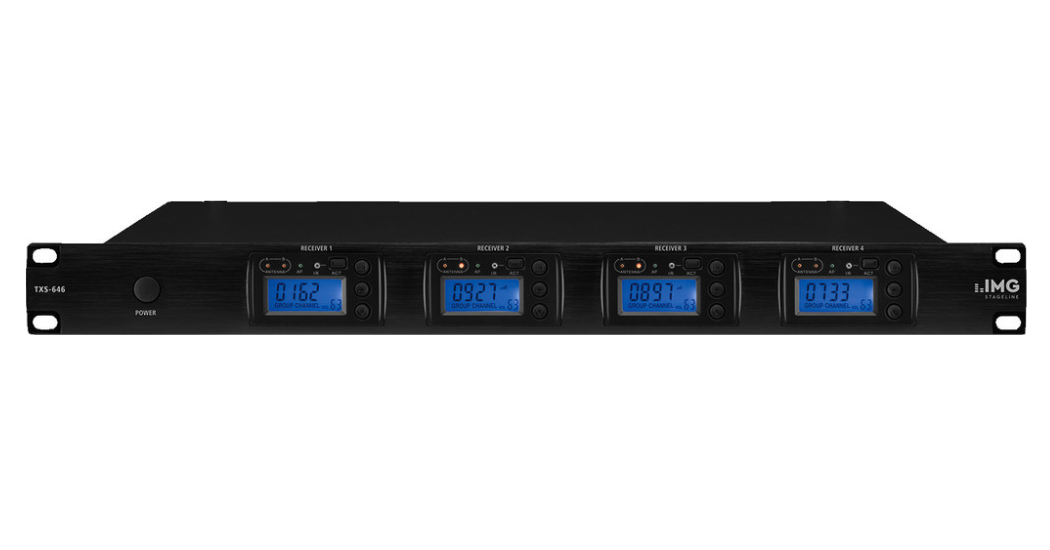

The IMG StageLine TXS–646 is a 4-Channel Multifrequency Receiver Unit, with added UHF PLL Technology. The TXS-646 can receive four wireless transmissions simultaneously. The TXS-606HT hand-held transmitter provides a warm and powerful sound and stands it’s ground among the instruments.
Alternatively, this product allows for unobtrusive microphone placement, with both a low susceptibility to acoustic feedback and excellent speech intelligibility. The TXS-646 quad wireless receiver from IMG Stage Line provides reliable operation at all times, is easy to use, and impresses with it’s crisp sound.
Please note that this equipment requires an annual fixed site wireless licence when used in the UK.
Product Features
- Autoscan
- Supplied with PSU
- 6.3 mm output for mixed signal
- 482 mm (19″) rack installation, 1 RS
- XLR output for each channel, bal
- True diversity system with removable antennas (BNC connection)
- Volume and squelch controls for each channel
- LC for group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display
- ACT function for transmitting frequencies to pocket transmitters TXS-606LT or TXS-606HT via infrared signal
- 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups, 100 channels each)
Product Specifications
- THD: < 0.5 %
- Weight: 2.9 kg
- Dynamic Range: 120 dB
- RF S/N Ratio: 105 dB
- Admiss. Ambient Temp: 0 – 40 °C
- Carrier Frequency: 672.000-696.975 MHz
- Audio Frequency Range: 30-18,000 Hz
- Power Supply: Via supplied plug-in PSU
- Dimensions: 482mm W x 45mm H x 310mm D
- Audio Output: 350 mV/600 Ω (Jack) 25 mV/600 Ω (XLR, bal.)
Downloads
If available, product downloads will appear here.
Data Sheet
For IMGStageLineTXS646 in PDF format
