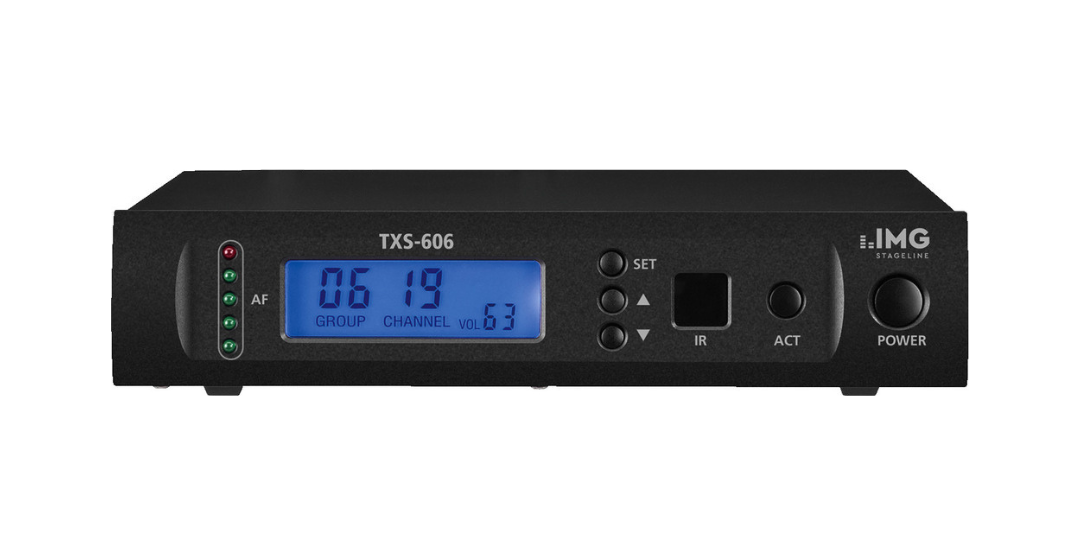

The IMG StageLine TXS–606 is a Multifrequency Receiver Unit (with UHF PLL technology). Please note that this equipment requires an ‘annual fixed site wireless microphone licence’ when used in the UK.
Product Features
- Auto-scan
- Robust metal housing
- Volume and squelch controls
- Supplied with power supply
- True diversity system with removable antennas (BNC connection)
- Additional LED level display for indicating audio level
- XLR output and 6.3 mm output
- LCD for indicating group/channel, antenna A/B, RF receiving level and AF audio level
- 8V supply voltage for active antennas or antenna amplifier is available
- ACT function for transmitting selected frequency to applicable transmitters via infrared signal
- 1,000 selectable UHF frequencies (672.000-696.975 MHz) in 10 groups with 100 frequencies each
Product Specifications
General:
- Channels: 1
- Dynamic Range: 100 dB
- RF S/N Ratio: 105 dB
- Audio Frequency Range: 30-18,000 Hz
- Carrier Frequency Range: 672.000 – 696.975 MHz
Receiver:
- Weight: 930g
- Connections: 1 x XLR, bal., 1 x 6.3 mm jack, unbal.
- Power Supply: Via encl.plug-in power supply
- Dimensions: 212mm W x 45mm H x 180mm D
- Audio Signal: 350 mV/600 Ω (jack)25 mV/600 Ω (XLR, bal.)
Downloads
If available, product downloads will appear here.
Data Sheet
For IMGStageLineTXS606 in PDF format
