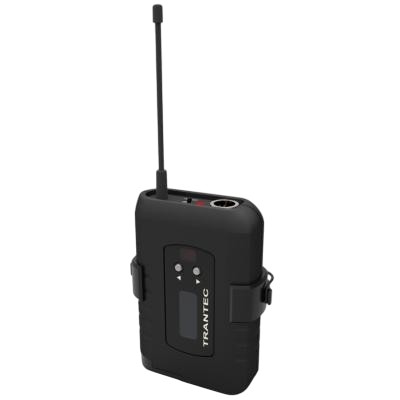

Trantec S5.5BTX UHF Multi Frequency Beltpack Transmitter (Excluding Microphone)


The Trantec S5.5BTX Bodypack Transmitter of the S5.5 System leaves absolutely nothing to be desired. Due to its ultra-compact metal housing they can be used in almost any situation – be it for tough live performances on stage or in film and television applications.

This product always cuts a good figure. Features an LCD screen, battery status LED, detachable antenna, infrared sync, 10-step gain, and belt clip. It provides 1,400 frequencies, 24 of which can be operated simultaneously in a multi-channel setup. Instruments, headset or lavalier microphones are connected securely via reliably locking mini-XLR connectors (TA4).

The transmitter uses a single AA battery to provide power for around 10 hours of continuous use and come set to G01/Channel 38 frequencies which are 606-614MHz.


  • Weight: 140 g
  • Battery: 1 x AA
  • AF Response: 60 Hz – 20 kHz
  • Accessories: Belt clip (supplied)
  • Operating Temperature: -10°C to +50°C
  • Input Sensitivity: -22dBV; 0dBV – adjustable
  • Dimensions: 55 mm W x 80 mm H x 22 mm D
  • Audio Input: TA4 (Mini-XLR, 4-pin; self-locking)
  • Available Frequency Bands: CH38 (606-614mHz)
  • Selectable Frequencies: 1400 (Presets: 10 banks with max. 24 frequencies each)
