IMG Stage Line TXS-631SET Multifrequency Microphone System

IMG StageLine TXS-631SET Multifrequency Microphone System

Recommended Retail Price

£228.92 excl. VAT

If discontinued, we may be able to provide suitable replacements.

Require next-day delivery? Check out our shipping info

Info Speech Bubble Vector

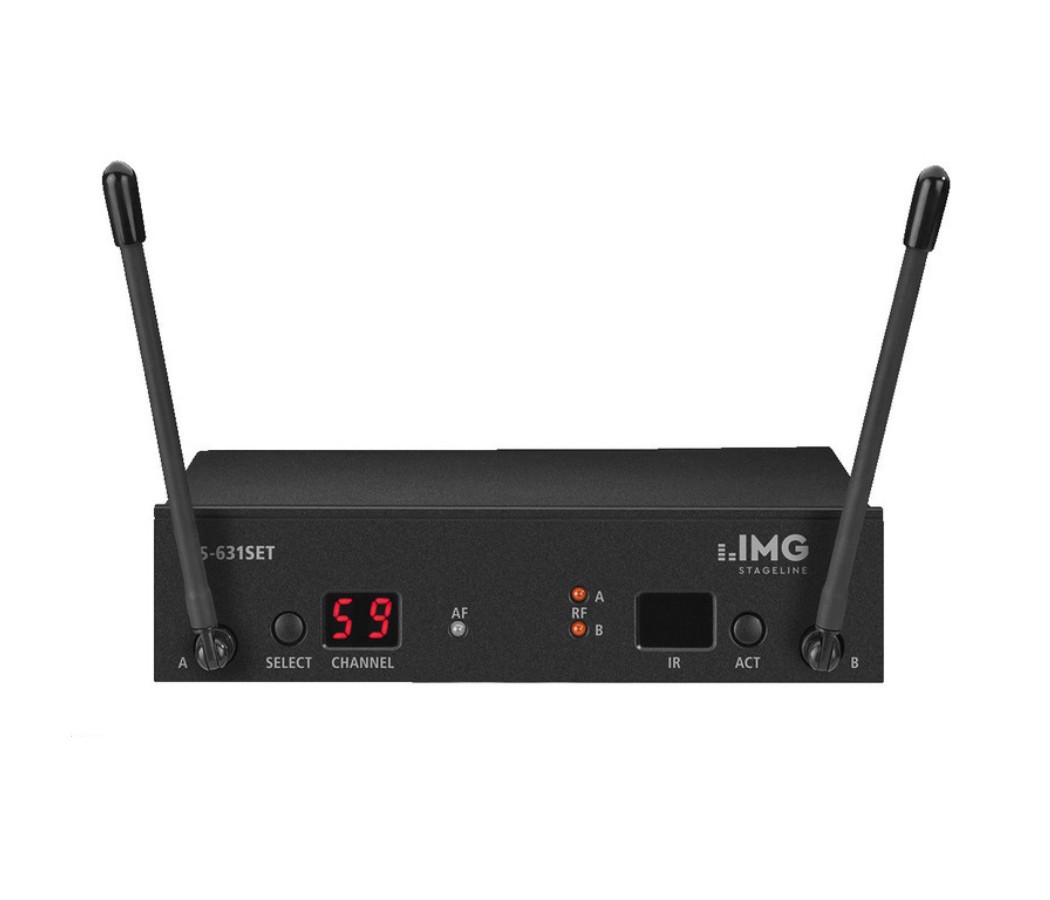

The IMG StageLine TXS631SET is a Multifrequency Microphone System, with added UHF PLL technology.

Product Features

  • Autoscan
  • Volume & squelch controls
  • True Diversity system
  • Gain can be adjusted at the pocket transmitter
  • 80 selectable UHF channels (863-865 MHz)
  • 1 pocket Transmitter, 1 Tie clip Microphone, 1 Receiver, 1 plug-in PSU
  • ACT function for transmitting the selected frequency to the pocket transmitter via infrared signal
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (pocket transmitter)

Product Specifications

General:

  • Channels: 1
  • THD: < 0.5%
  • Admiss. Ambient Temp.: 0-40 °C
  • Dynamic Range: 120 dB
  • RF S/N Ratio: 105 dB
  • Audio Frequency Range: 50-18,000 Hz
  • Carrier Frequency Range: 863-865 MHz

Transmitter:

  • Weight: 235g
  • Transmitting Power: < 10 mW
  • Operating Range: ≈ 30 m
  • Power Supply: 2 x 1.5 V batt. AA size
  • Dimensions: 52mm W x 52mm H x 275mm D

Receiver:

  • Weight: 482g
  • Power Supply: Via encl. plug-in power supply
  • Connections: 1 x 6.3 mm jack, unbal.1 x XLR, bal.
  • Dimensions: 152mm W x 38mm H x 120mm D
  • Audio Signal: 350 mV/10 kΩ (jack)25 mV/10 kΩ (XLR, bal.)
Manufacturer: IMG StageLine

Attributes:

Stock Levels:

Downloads

If available, product downloads will appear here.

Data Sheet

For IMGStageLineTXS631SET in PDF format
