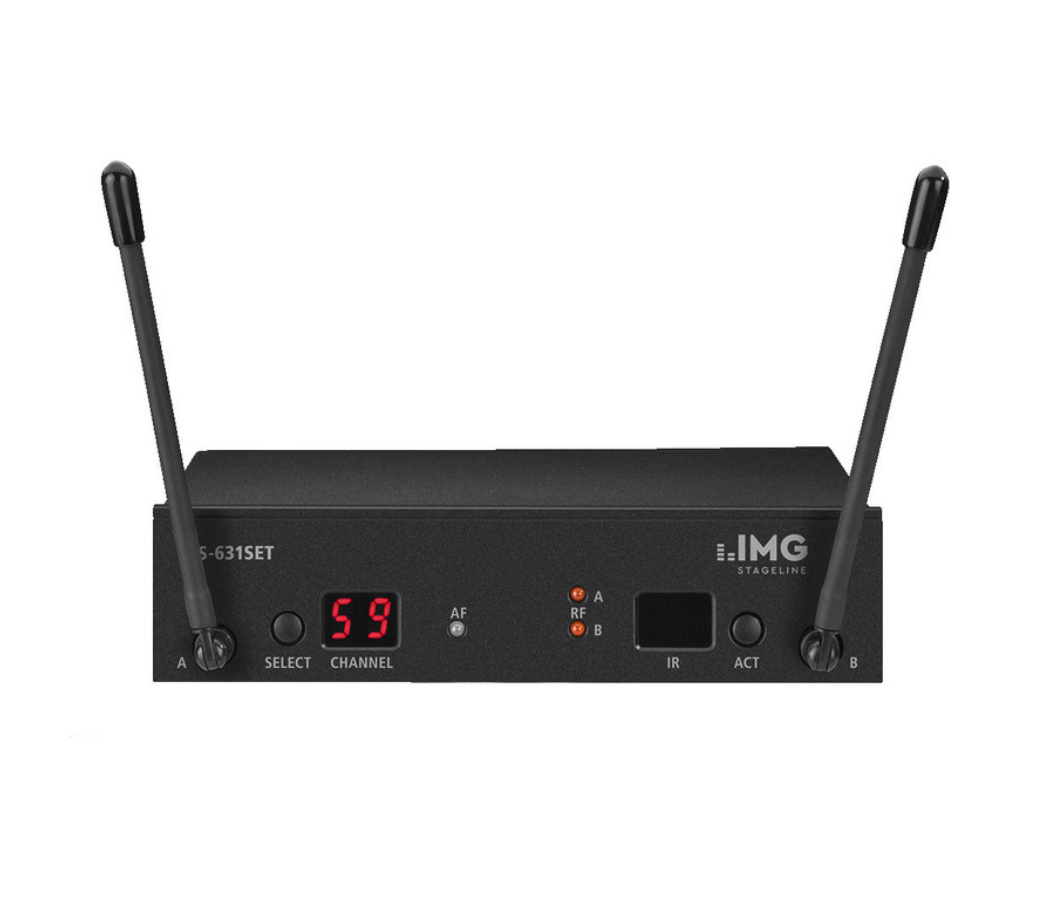

The IMG Stage Line TXS–611SET is a Multifrequency Microphone System, with added UHF PLL technology.

Product Features

• Autoscan
• True Diversity system
• Volume and squelch controls
• Robust metal housing (receiver)
• 80 selectable UHF channels (863-865 MHz)
• 1 Handheld Microphone Transmitter (cardioid characteristic), 1 Receiver, 1 plug-in PSU
• ACT function for transmitting the selected frequency to the hand-held microphone via infrared signal
• Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)

Product Specifications

• THD: <0.5%
• Operating Range: Approx. 30m
• Carrier Frequency: 863 – 865MHz
• Transmitting Power: <10mW (EIRP)
• Weight: (Transmitter) 235g (Receiver) 482g
• Connections: 1 x 6.3mm jack, unbal. 1 x XLR, bal.
• Dimensions: (Transmitter) Ø 52mm x 275mm (Receiver) 152x38x120mm
• Power Supply: (Transmitter) 2 x 1.5V batt. AA size (Receiver) via suppl. plug-in PSU
