Chord NU4-C Quad Combo UHF Wireless Handheld & Beltpack Microphone System
The Chord NU4–C is the ideal choice if you want a ‘Quad Combo’ UHF Handheld & Beltpack Wireless Microphone System at a reasonable price. Comes with two Beltpack & Handheld Transmitters which connect to a 19” rack-mountable quad receiver on ‘UK licence free wireless frequencies’.

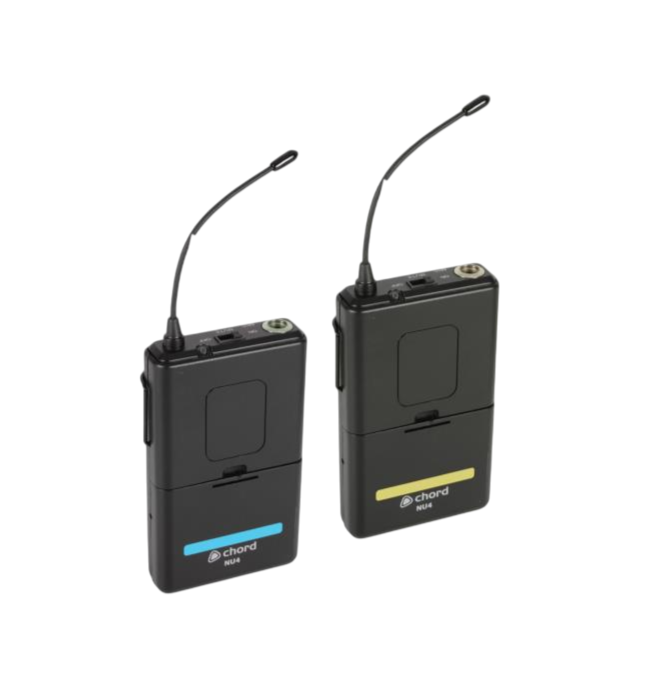

The transmitters are colour coded which makes it easy to identify which channel you’re broadcasting on. Red is 864.8MHz, Green is 864.3MHz, Blue is 863.42MHz, and Yellow is 863.1MHz. The unit comes with a UK mains power adaptor for the receiver and 8 x AA batteries for the beltpack and handheld transmitters. The system comes with neckband and lapel mics so it offers a great deal of versatility.

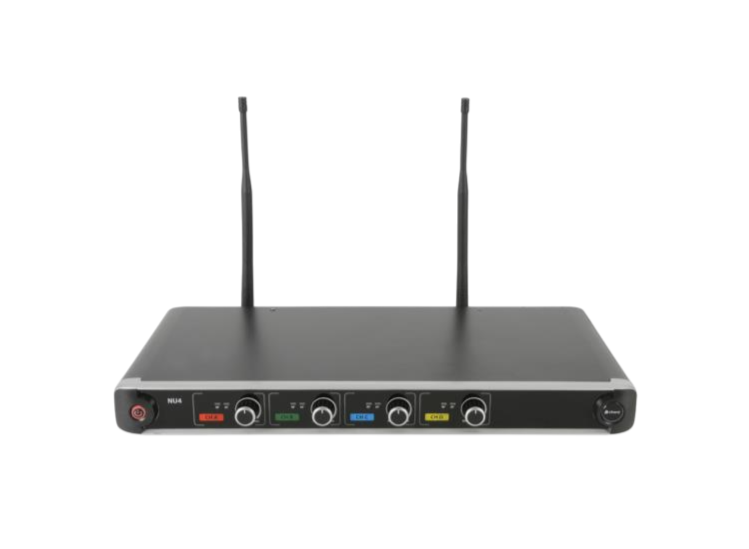

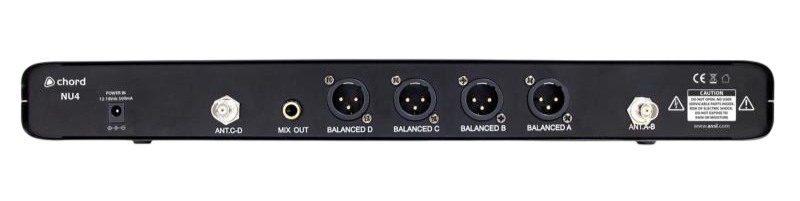

The receiver is also compatible with standard 19″ racking and contains a further four balanced XLRM outputs or a single unbalanced 6.3mm mixed output. UHF antennas and extension leads are included in the box, along with the 19” rack mounting ears as well. Please note that all four transmitters need to be turned on simultaneously for the system to work correctly.
Product Specifications
- Range: Up to 60m
- Signal–to–Noise Ratio: >80dB
- Output Impedance: 2.2k Ohms
- THD (Total Harmonic Distortion): <0.5% @1KHz
- Output Level: 400mV balanced / 200mV unbalanced
- Transmitter Requirements: 8 x AA batteries; 2 per each
- Power Supply: 12-18Vdc 5000mA (Mains Adaptor included)
- Carrier Frequencies: 864.8MHz, 864.3MHz, 863.42MHz and 863.1MHz
