- Chord NU20-N Dual UHF Beltpack Wireless Microphone System
For technical support, call us on 0191 414 4241

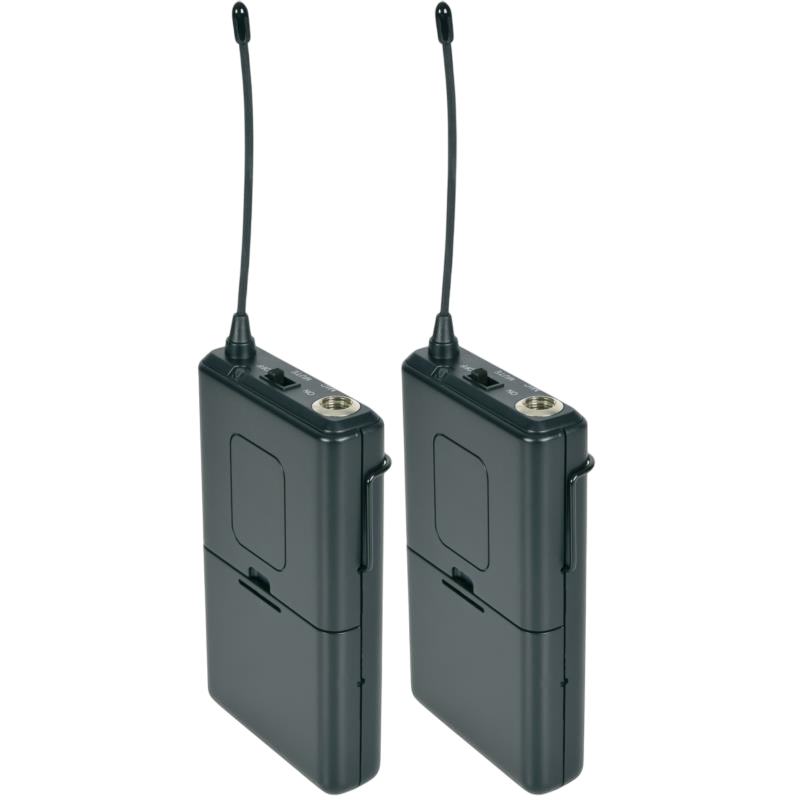

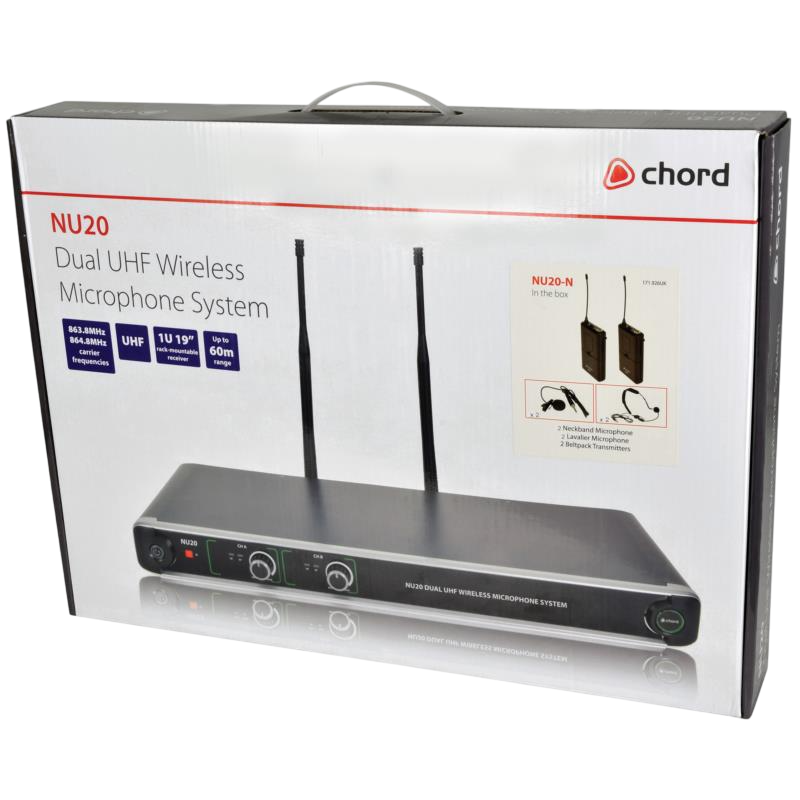

The Chord NU20–N is the ideal choice if you want a Dual UHF Beltpack Wireless Microphone System at a reasonable price. The system comes with two beltpack transmitters which connect to a 19” rack mountable dual receiver on UK licence free wireless frequencies (863.8 and 864.8MHz). The UHF antennas and extension leads are also included in the box, as well as the 19” rack mounting ears.

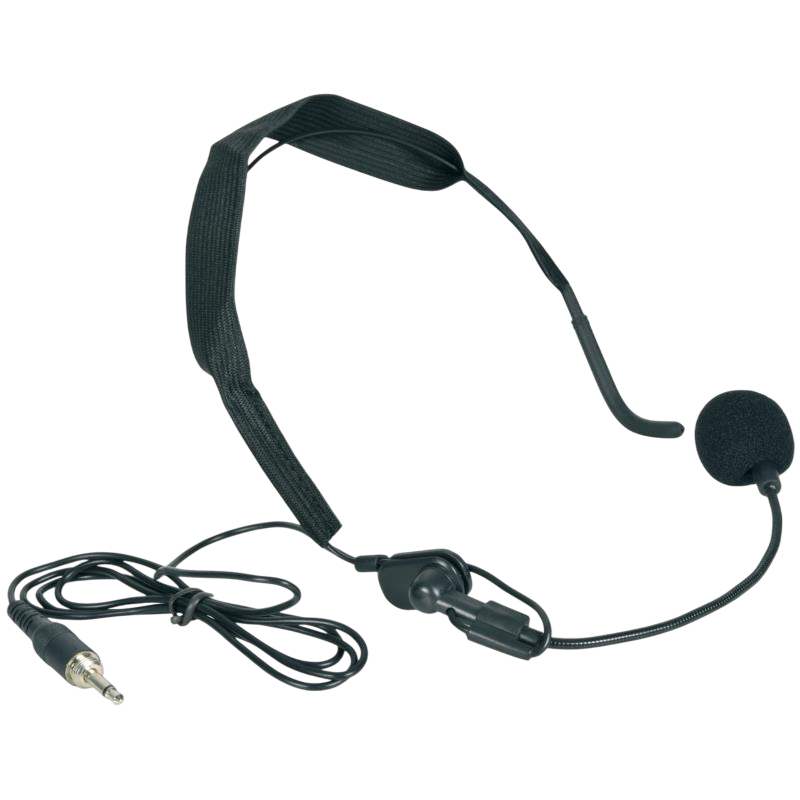

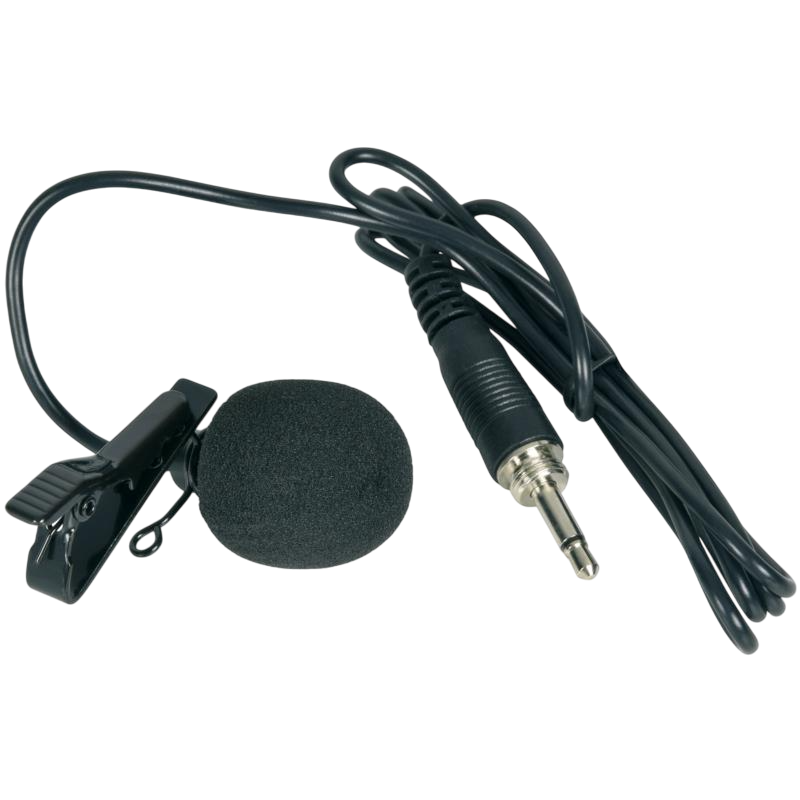

Comes with a UK mains power adaptor for the receiver and 4 x AA batteries for the belt pack transmitters, along with 2 headsets and 2 lavalier lapel microphones. The receiver is also compatible with standard 19″ racking, which have two balanced XLRM outputs or a single unbalanced 6.3mm mixed output. XLR leads are available below should you wish to use the balanced outputs.
Product Specifications
- Range: Up to 60m
- Signal-to-Noise Ratio: >80dB
- Output Impedance: 2.2k Ohms
- Frequency Response: 50Hz-18KHz (±3dB)
- Output Level: 400mV balanced / 200mV unbalanced
- THD (Total Harmonic Distortion): <0.5% @1KHz
- Power Supply: 14Vdc 350mA (Mains Adaptor included)
- Transmitter Requirements: 4 x AA batteries; 2 per each
Attributes:
Stock Levels:
Out of stock
Downloads
If available, product downloads will appear here.
User Guide
For ChordNU20N in PDF format
