Chord NU1-H UHF Single Handheld Microphone System

£109.00

03-Chord-NU1H-2-zoom
23-Chord-NU1H-3-zoom
14-Chord-NU1H-4-zoom
22-Chord-NU1H-5-zoom
03-Chord-NU1H-2-zoom
23-Chord-NU1H-3-zoom
14-Chord-NU1H-4-zoom
22-Chord-NU1H-5-zoom

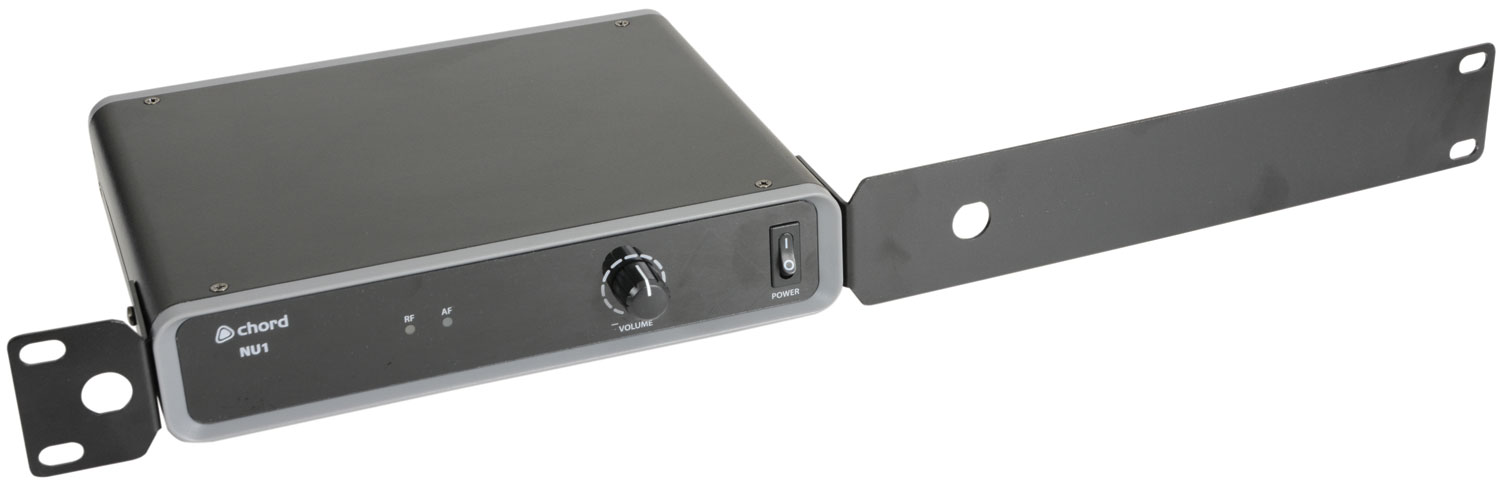

The Chord NU1H is a single channel UHF Single Handheld Microphone System,  available on two different UK licence free frequencies (863.1MHz or 864.1MHz). The receiver unit can be rack mounted in standard 19″ racks by using the included rack mounting kit and front mounting antenna accessories.

The handheld transmitter requires 2 AA batteries which are included, so you’re ready to perform right out of the box. The unit features a pilot tone and a mute circuit to help ensure a stable signal and it has a balanced XLRM output or an unbalanced 6.3mm mixed output.

Comes supplied with a 6.3mm jack to jack lead, so you can use the unbalanced output to connect directly to your system. XLR leads are available below should you wish to use the balanced output instead.

Specifications:

  • Range: 60m
  • Image Rejection: >85dB
  • SignaltoNoise Ratio: >105dB
  • Output Impedance: 2.2k Ohms
  • Frequency Response: 50Hz – 18KHz ± 1dB
  • Carrier Frequency: 863.1MHz or 864.1MHz
  • Transmitter Requirements: 2 x AA batteries
  • THD (Total Harmonic Distortion): <0.5% @1KHz
  • Output Level: 400mV(balanced), 200mV (unbalanced)
  • Power Supply: 12-18Vdc, 350mA (Mains Adaptor included)
