Passive Direct Injection Box

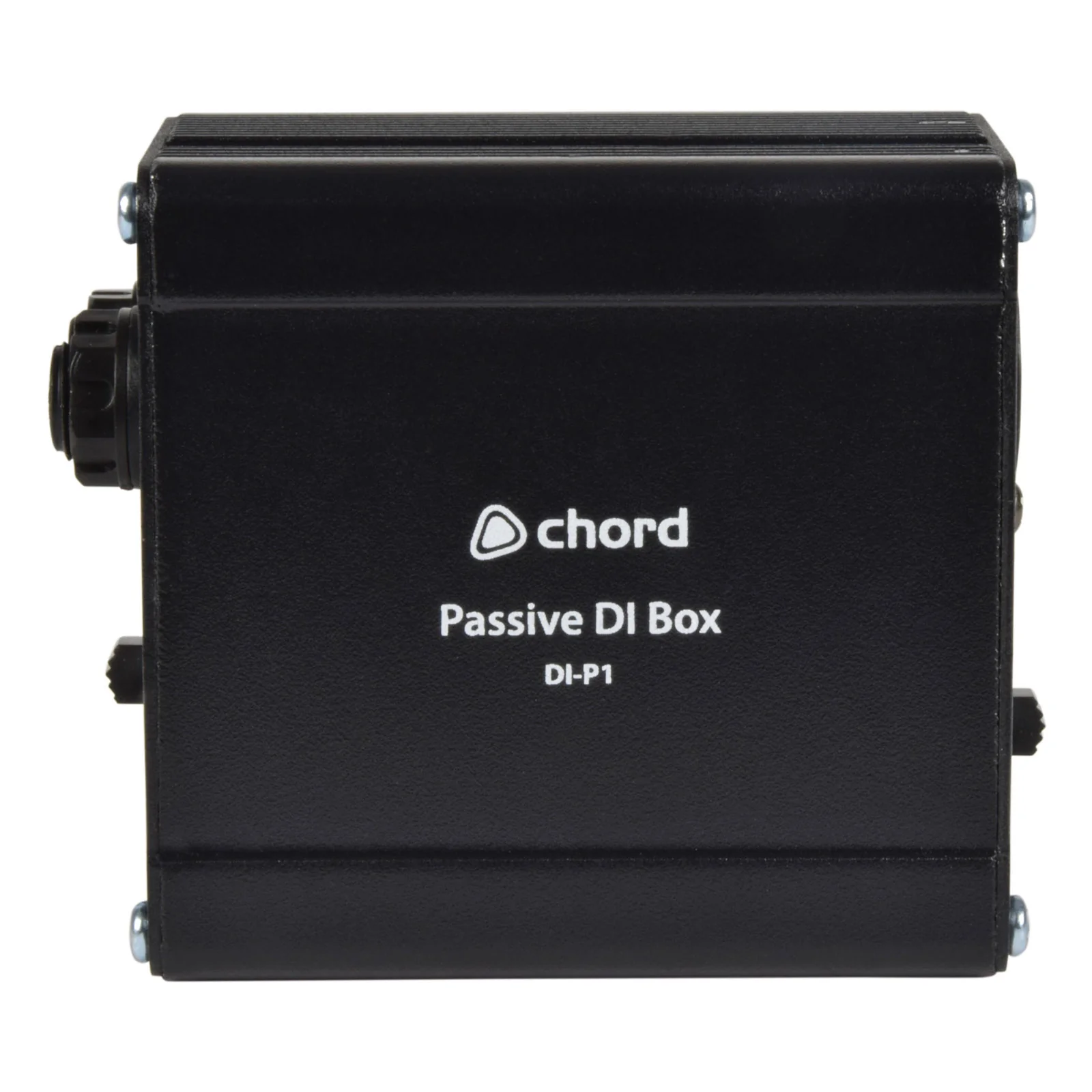

Chord DI-P1 Passive Direct Injection Box

£18.99

The Chord DIP1 Passive DI Box was superbly created for converting high impedance instrument outputs to low impedance line signals, which in turn, are then directly fed into a mixing console.

This Passive DI Box contains an internal Buffer Amplifier; further boosting the signal. Low impedance (Lo-Z) is capable of longer cable runs via XLR connection with lower signal degradation than high impedance. Comes equipped with 3 pad settings, RF/mains filter and selector for ground lift (with or without filter). If you’re searching for an Active Direct Injection Box – rather than a passive one, simply click here!

Product Features

  • 3 Pad Settings for Level Matching
  • Ground Lift option isolates signal ground w/o filter
  • Ground Float option for ground lift with RF/mains filter

Product Specifications

  • Weight: 234g
  • Input Impedance: >100k Ohms

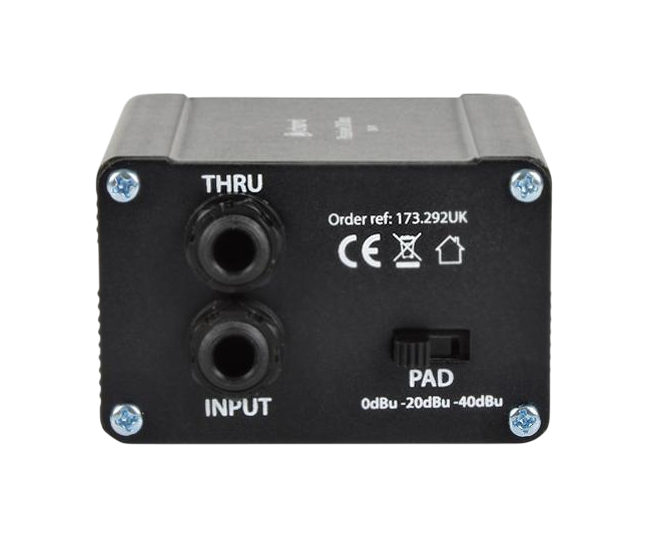

  • Input: 6.3mm jack (Unbalanced)
  • Dimensions: 86mm W x 45mm H x 70mm D
  • Controls: 0/-20/-40dBu Pad & Ground-Float-Lift switch

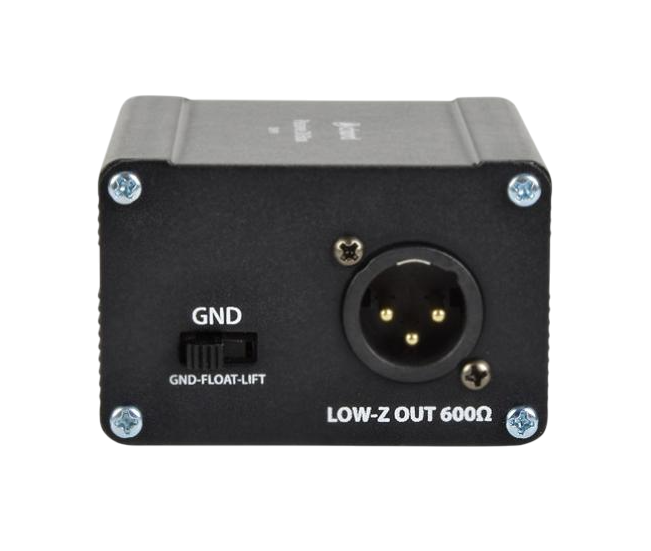

  • Outputs: XLRM (Balanced), 6.3mm jack through (Unbalanced)
