The Trantec S4.10–RX2–HL is a UHF Dual Wireless Receiver, manufactured to make multi-channel wireless hassle-free and specifically designed to provide a robust wireless connection at an unbeatable price-performance-ratio. A superb product that allows you to master numerous challenges with up to ten simultaneous channels.

This Series Receiver can be used in cooperation with a broad range of microphones, or even musical instruments; making it the perfect solution for amateur or semi professional musicians – in addition to theatre performers. Whether you’re using a handheld microphone for vocals/speech, or instrument pickup with a beltpack transmitter, the S4.10RX2-HL is sure to deliver! Each Handheld Transmitter has a built-in dynamic Cardioid Microphone, and further contains:

• Battery Life indicator
• Numerical LED display
• Adjustable microphone sensitivity
• 1 AA Battery; providing up to 10 hours of continuous use

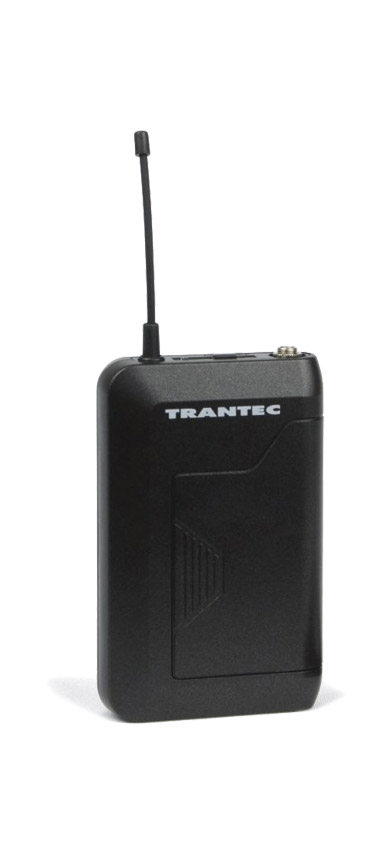

Each Lapel Transmitter has various features, several comprise of:

• Cable Length: 1500mm
• Current Consumption: 50uA
• Polar Pattern: Omnidirectional
• Transducer Type: Electret Condenser

The S4.10-RX2-HL operates on frequencies between 863.000MHz to 865.000MHz – otherwise known as Channel 70. It also comes with one S4.10 Handheld Transmitter, one S4.10 Lapel Transmitter and an ABS Carry Case.

Product Features

• Up to 10 simultaneous channels
• 16 selectable frequencies available
• IR Sync – Infrared auto channel setup
• 19” optional Rack Mount – one/two receivers
• Diversity operation with detachable antenna
• Fully synthesised PLL quartz tuning technology
• Dual channel Wireless Receiver with audio mixing output
• Receiver LED’s show AF peak level, RF level & Diversity channel A or B

Product Specifications

• Sensitivity: 10uV @ 45dBA, S/N
• Power Supply: 11-18 VDC 300mA
• Diversity Reception: Antenna Diversity
• Squelch: Tone SQ, Carrier SQ, Noise SQ
• Audio Frequency Response: 50Hz – 15 kHz
• Audio Output Level (Max.): Balanced (XLR socket): 16dBu Unbalanced (1/4” jack socket): 10dBu
