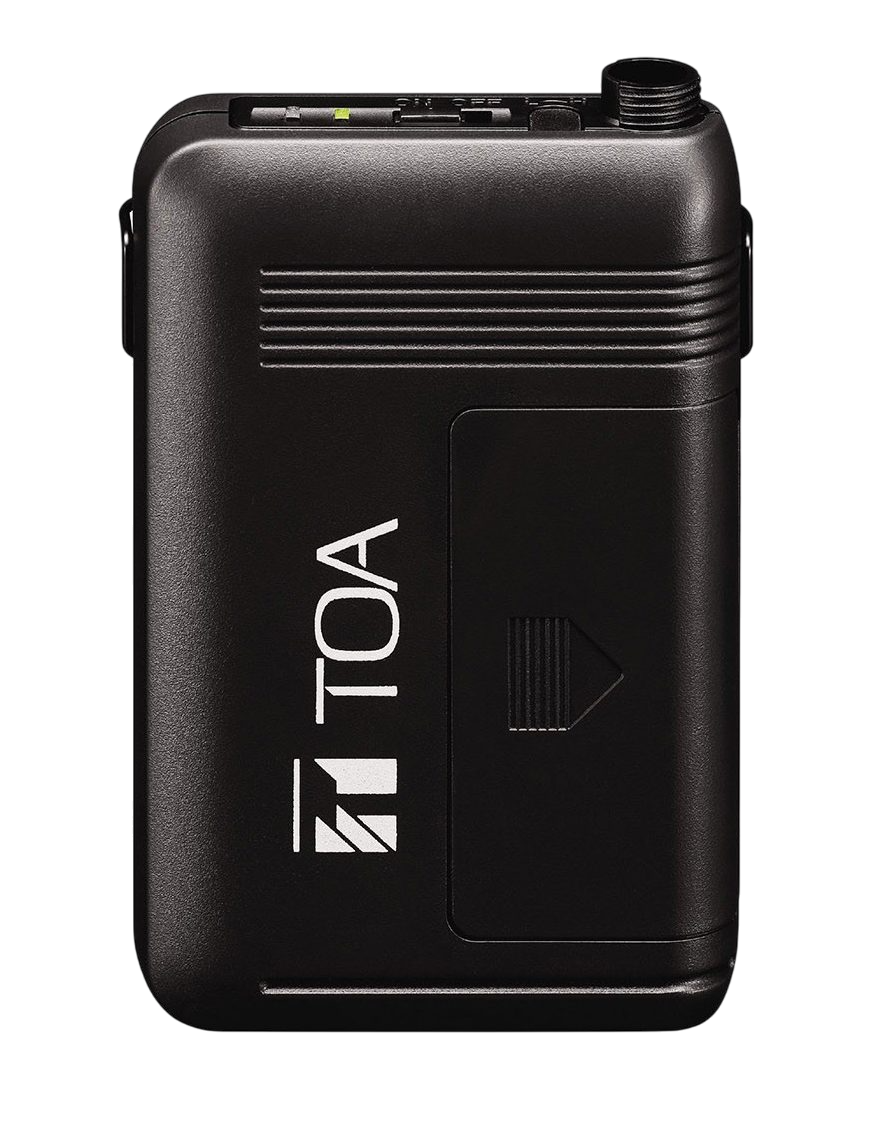

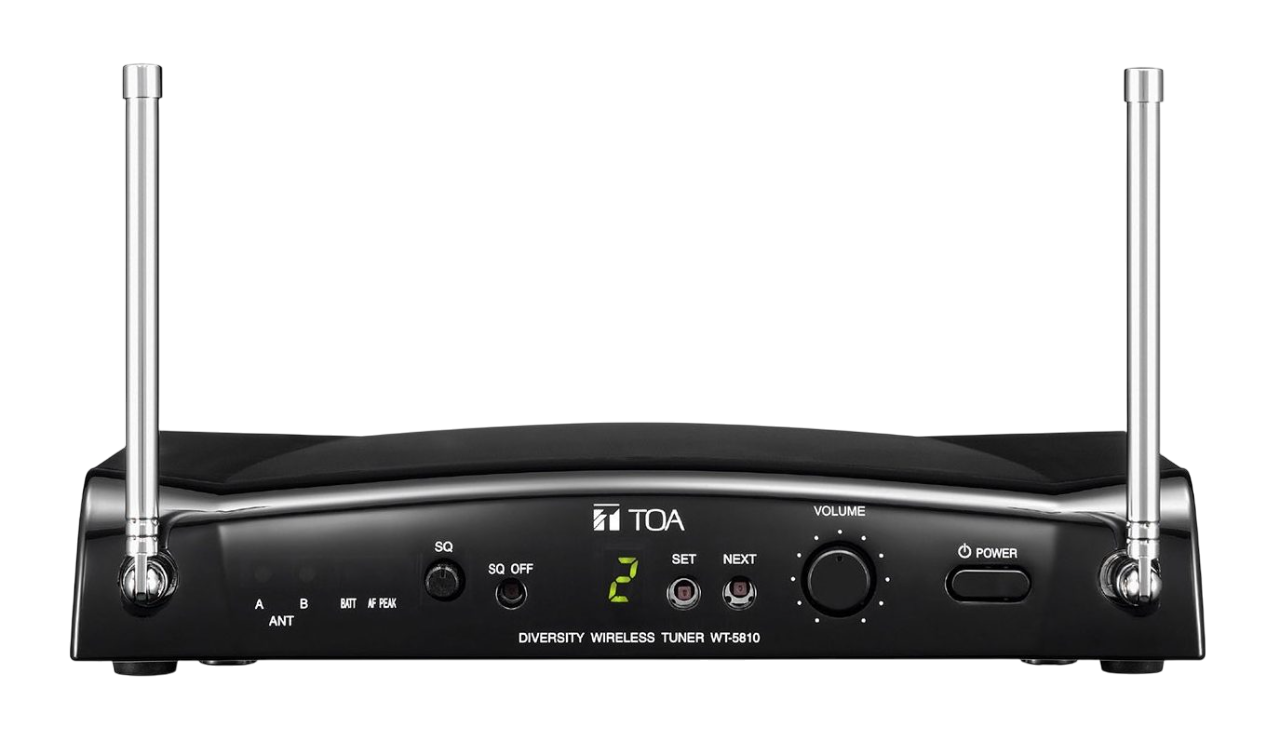

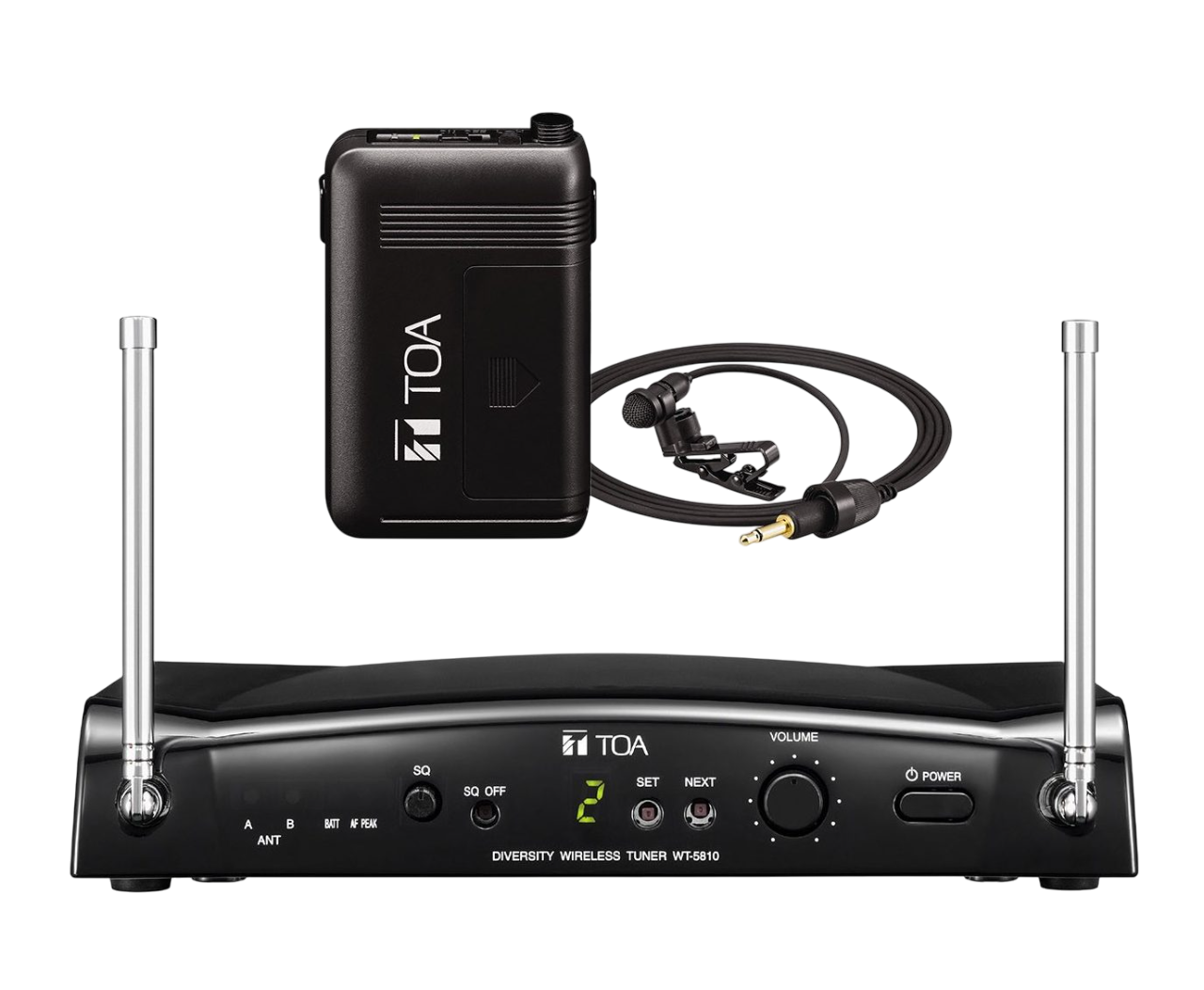

The TOA WS–5325U UHF Wireless Beltpack System with YP-M5300 Cardioid Lapel Microphone, consists of a Wireless Transmitter (WM-5325), a Lavalier Microphone (YP-M5300), and a Wireless Diversity Tuner (WT-5810). The WM-5325 Wireless Transmitter has been manufactured for use with a UHF System, and is available in both G01 and D04 frequencies.
The YP-M5310 employs an electret condenser microphone element, and has been designed for use in Speech Reinforcement applications. It further contains a compandor noise reduction circuit to minimise the influence of ambient RF noise. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
Product Features
- Diversity operation
- Automatic frequency scan

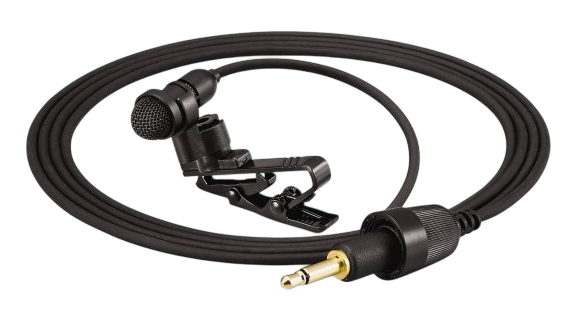

- Includes YP-M5300 Lavalier Microphone
- UHF bodypack transmitter with excellent range
- Compact/ultra-lightweight; can be carried effortlessly over long periods of time
Product Specifications
- Frequency Range: 576 – 865 MHz*, UHF
- Tone Frequency: 32.768 kHz
- Operating Temperature: -10 °C to +50 °C (excluding battery)
- Included Accessories: AC adapter x 1, Screw driver x 1, Storage case x 1, Neck strap x 1
- System Components: Wireless transmitter WM-5325 x 1 & Lavalier microphone YP-M5300 x 1, Diversity wireless tuner WT-5810 x 1
Downloads
If available, product downloads will appear here.
User Guide
For TOAWS5325U in PDF format
