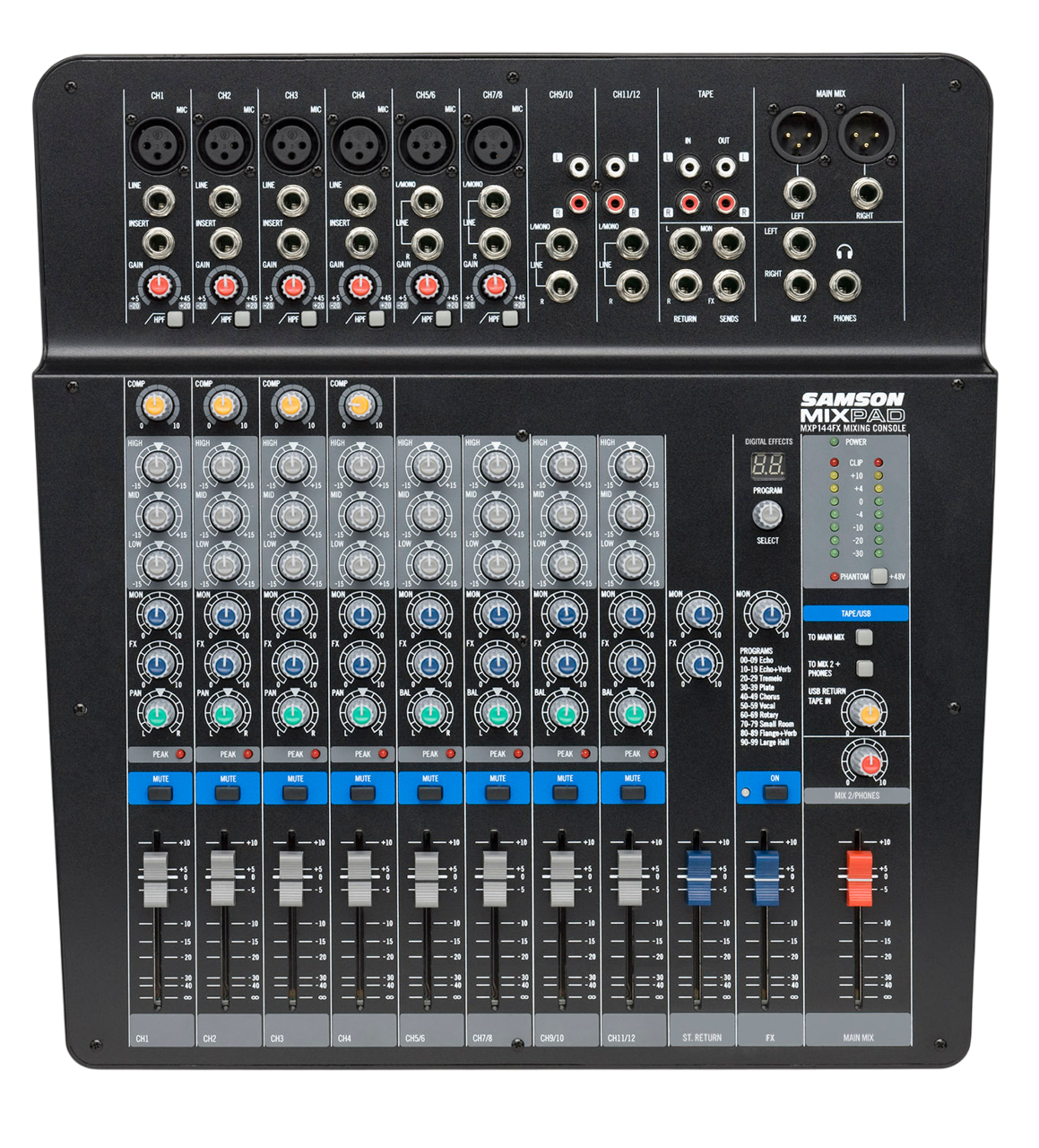

The Samson MixPad MXP144FX is a 14-input Analogue Stereo Mixer with effects and USB compatibility. It is a lightweight mixer which offers all of the sonic clarity, ease of use and premium performance that serious musicians demand. However the MXP144FX is also perfect for education, broadcast, band rehearsals and other live sound applications as well.

With 100 24-bit, low-noise digital effects, the MXP144FX offers a studio-inspired effects processor to give your mixes a professional touch. The mixer also features a high-integrity, bidirectional USB connection for recording a mix to your favourite Digital Audio Workstation, or for integrating digital music files from your computer into a project.

The MXP144FX offers six MDR mic preamps with four of the channels equipped with single-knob compressors for studio-quality dynamic control without the non-stop tweaking of external gear. All channels on the MXP144FX are controlled via precision 60mm faders and feature a 3-band EQ, Gain trim, high pass filter and mute switch. In addition, each channel on the MXP144FX has a pre-fader Aux send for your monitor mix and a post-fader Aux send for introducing external effects.

Exceptional output flexibility makes the MXP144FX a worthy companion regardless of venue size, giving you precise fader control over your Main Mix (XLR and 1/4″ outs), as well a Mix 2 output, headphone (Phones) monitoring with level control and a RCA Tape out for recording your performance.

The MXP144FX has selectable 48-volt phantom power so you’re free to mix in the warm, natural response of your favourite condenser microphones. Further catered to live performance, the MXP144FX includes brightly coloured knobs, as well as 8-segment LED level metering for safe and efficient operation in dark environments. Portable, easy to use and jam-packed with features that ensure optimal control over your performance, Samson’s MixPad MXP144FX represents a new era of possibility for affordable live mixers.

Product Features

• 3-band active EQ
• High-quality, precision faders
• XLR and 1/4″ Main Mix outputs
• High-integrity, bidirectional USB interface
• Four TRS inserts for external signal processing
• Multiple outputs: Main Mix, Mix 2, Phones and Tape
• Six Class A, MDR (Maximum Dynamic Range) mic preamps
• Four stereo channels with multiple input options (1/4” & RCA)
• All mic channels equipped with Input Gain + High Pass Filters
• USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs
