The Cloud PM Range of Paging Microphones have been remarkably constructed for general purpose multizone applications, and can therefore be used with non-Cloud products. Designed to interface directly with recent Cloud products – such as the DCM1 – via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The Cloud PM8EK is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones & CDPM microphones may be freely intermixed on the Digital Paging Interface.
Four models of the PM are available: PM4, PM8, PM12 & PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
Product Features
- “Busy” LED
- “Talk” and “Call-all” buttons
- Zone disable function
- Individual and multiple zone selection
- Auto-zone reset after announcement
- Defineable zone groups with group selection
- Configurable two-layer announcement priority system
- Pre-announcement chime with internal chime sounder
Product Specifications
- Number of Zones: 8
- Mic Polar Pattern: Cardioid
- Mic Capsule Type: Electret Condenser
- Mic Sensitivity: 68 dB ±3 dB (0 dB = 1 V/μbar @ 1 kHz)
- Mic Frequency Response: 80 Hz to 16 kHz
- Current Consumption: 61 mA (idle mode), 83 mA (peak)

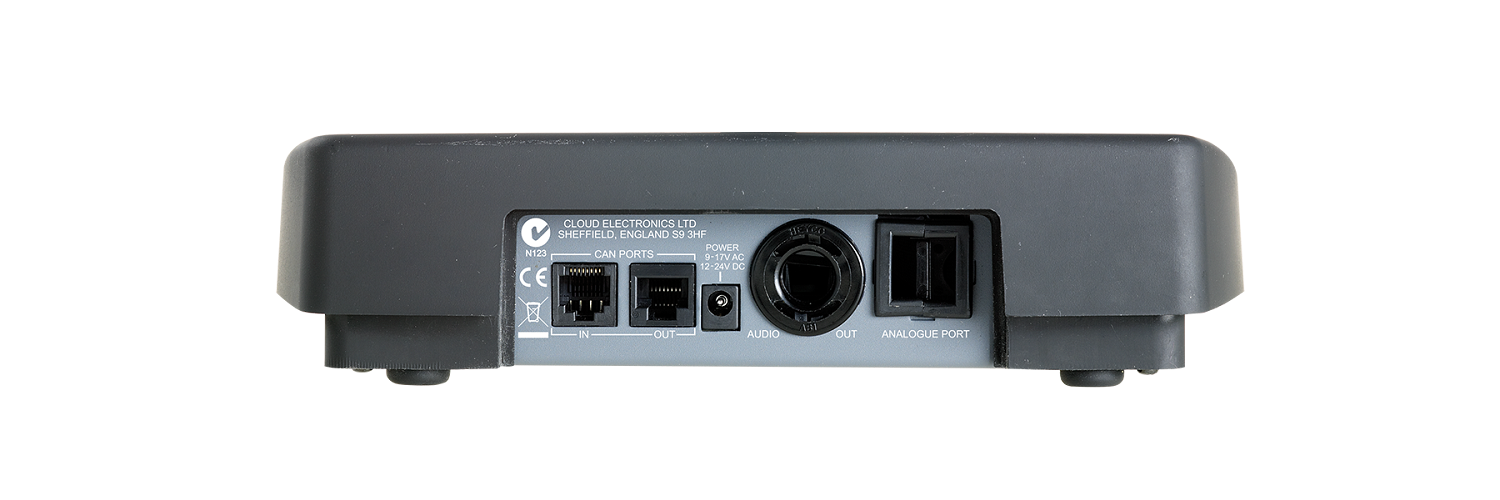

- Digital Interface: Cloud Digital Paging Interface (RJ45)
- Power Input Via Digital Interface: RJ45 Digital Paging Interface connector
- Number of Chimes: 4 (user-selectable), with Internal Speaker
- Power Input Via Analogue Interface: Internal screw-terminal access port connector
- Analogue Interface: 1) Zone Access Output (Short-to-Ground); 2) Audio output (balanced)
- Power Input Local Supply: 9 – 17 VAC or 12 – 24 VDC, via rear 2.1 mm coaxial connector
- Weight: Product (Net): 1.0 kg or 2.2 lbs / Shipping (Gross) 1.3 kg / 2.9 lbs
- Dimensions: Gooseneck: 300 mm / Base Unit: 245 wide x 65 high (less gooseneck mic) x 170 deep (mm) / 9.65” wide x 2.56” high (less gooseneck mic) x 6.7” deep / Shipping: 250 wide x 200 high x 240 deep (mm) / 10” wide x 8” high x 9” deep
