The TOA WT–D5800 is a UHF Digital Receiver (G01 / CH38), providing many advantages over the majority of modern-day Analogue Systems. You’re no longer limited to a handful of simultaneous channels and encrypted audio signals offer the perfect solution for those confidential applications.
Some of the other advantages that the WT-D5800 offers is the encryption of audio data for confidential applications, resulting in less intermodulation. As well as battery status indication, a built-in feedback suppressor (FBS)., and contact output for battery low or microphone active.
Product Features
- Detachable antenna
- Frequency channel scan
- Intuitive LCD display
- Feedback suppressing
- Built-in optimized preset equalization in microphones
- Audio mixing with cascading voice input connectivity (same applies to antenna)
Product Specifications
- Finish: Resin, black
- ID Selectable: 10 patterns
- Power Consumption: 305mA (13.5V)
- Frequency Range: 606-638MHz
- Frequency Response: 50 Hz – 12 kHz
- Operating Temperature: -10°C to 50°C
- Antenna Input Attenuator: 0dB/-10dB switchable
- Receiving System: Double Super-heterodyne
- Total Harmonic Distortion: 0.05% or less
- Mixing Input: -20dB, 10KΩ, 2-conductor phone jack
- Operating Humidity: 30% to 85% RH (no condensation)
- Power Source: AC Mains (supplied AC adaptor must be used)
Downloads
If available, product downloads will appear here.
User Guide
For TOAWTD5800 in PDF format
Want to learn more about a product? Get in touch with us today
You may also like...
-
Wireless Single Channel Microphone Systems & MicrophonesTOA WT-5810 UHF Wireless Tuner (16-Channel, Space Diversity)
£265.00 excl. VAT Select options -

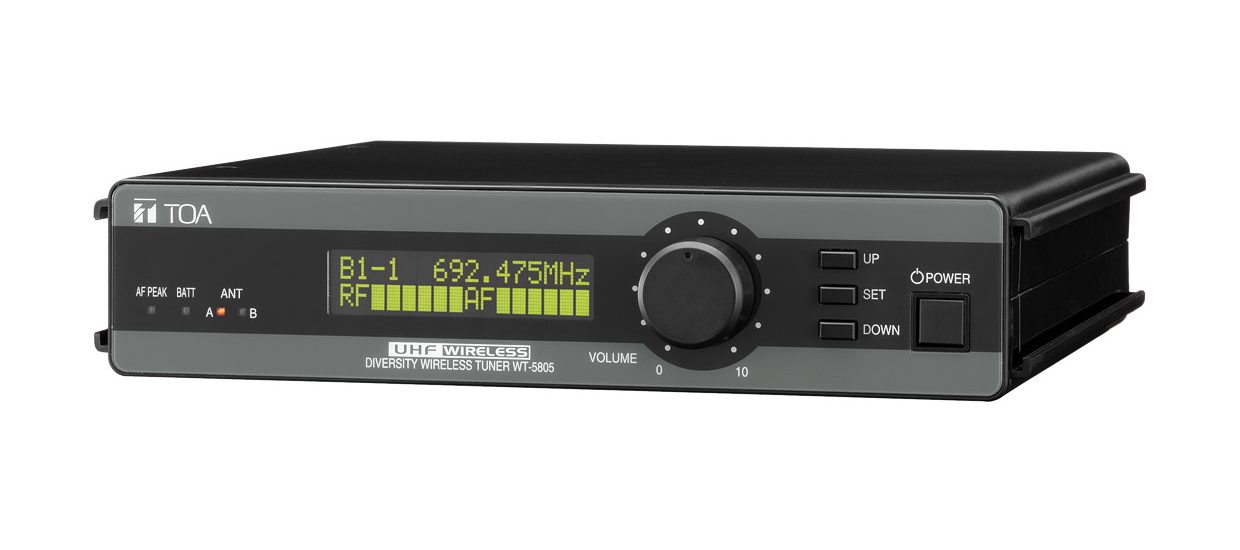

Wireless Single Channel Microphone Systems & MicrophonesTOA WT-5805 UHF Wireless Tuner (64-Channel, Space Diversity, Rack Mountable)
£330.00 excl. VAT Select options -

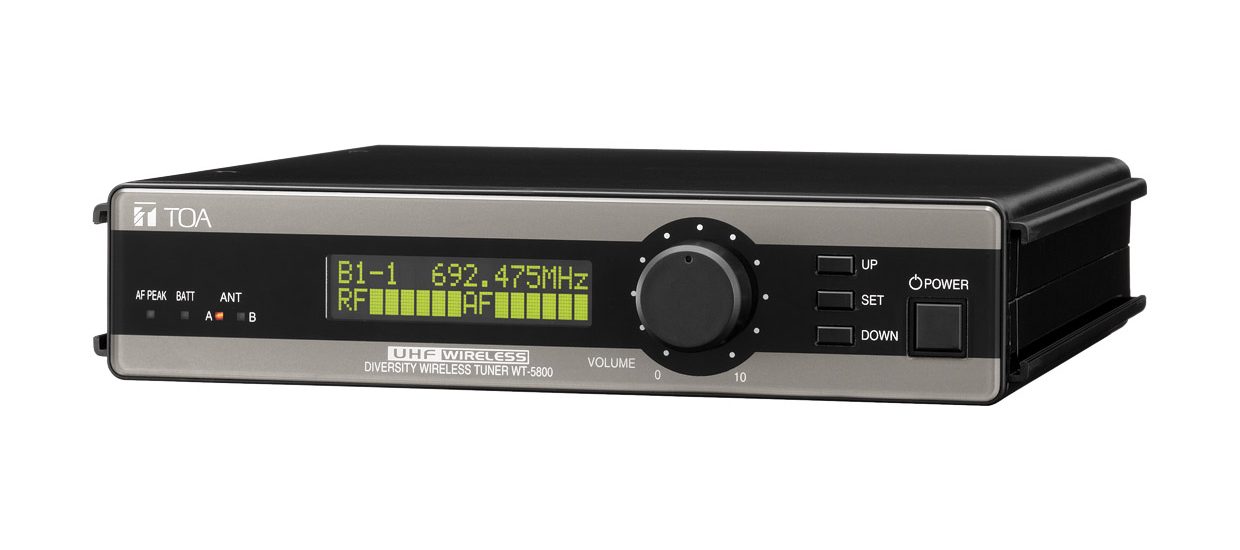

Wireless Single Channel Microphone Systems & MicrophonesTOA WT-5800 UHF Wireless Tuner (64-Channel, True Diversity, Rack Mountable)
