For technical support, call us on 0191 414 4241

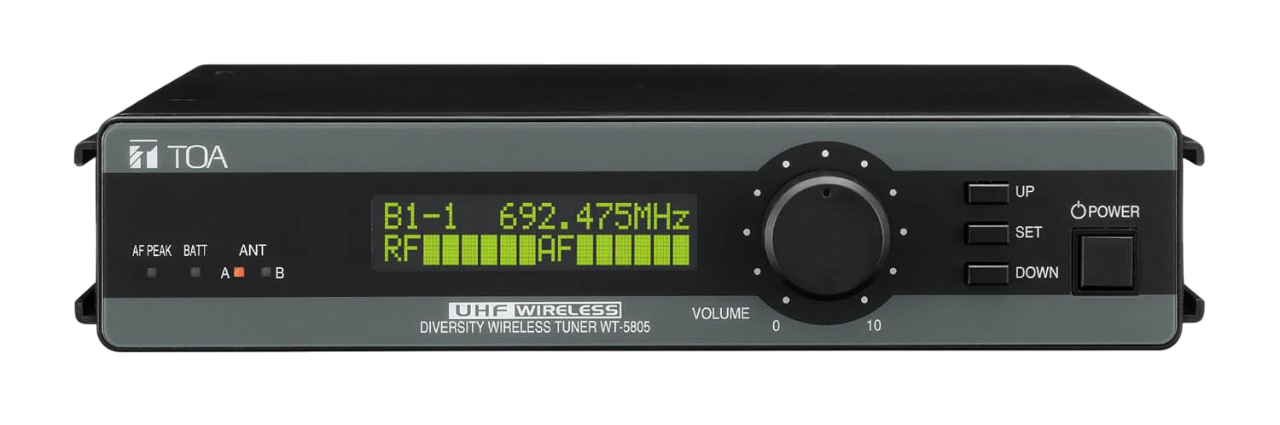

The TOA WT–5805 is a rack-mountable UHF Wireless Tuner, specifically, a PLL-synthesizer controlled double superheterodyne true diversity tuner, to be used in UHF wireless systems.
It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.
Product Features
- Automatic frequency scan
- Integrated squelch function
- Ideally suited for fixed installations such as in event locations, multi-purpose and sports halls, etc
- System always select the stronger of the two antenna signals for further processing
- Setup with up to 16 simultaneously operating receivers possible
Product Applications
- Speech
- Fixed installations
- Health & fitness clubs
Product Specifications
- Frequency Response: 100 Hz – 15 kHz
- Frequency Range: 863 – 865 MHz
- Selectable Frequencies: 64
- Diversity Principle: Space diversity
- Antenna Inputs: 75Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
- Antenna Outputs: N/A
- Audio Output: XLR balanced, ¼“ jack unbalanced
- Dimensions: 210mm W x 44mm H x 205.1mm D
- Operating Temperature: -10°C to +50°C
- Power Source: AC mains (supplied AC adapter must be used)
Downloads
If available, product downloads will appear here.
User Guide
For TOAWT5805 in PDF format
