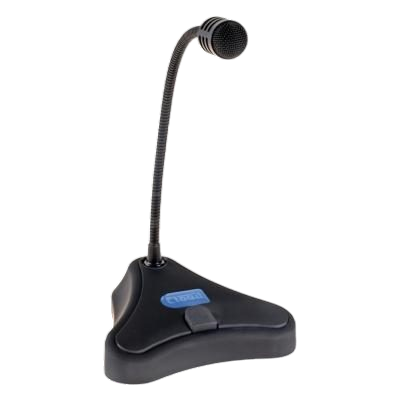

The Cloud PM1 Paging Microphone is a simple-to-use microphone ideal for single zone or all call applications. A heavy-duty design makes it perfect for commercial applications and it has passive components which allow it to be used with virtually any analogue public address system.
The paging microphone has a 300mm long flexible gooseneck protruding from its modern looking base and comes complete with integrated windshield.
The unit is not supplied with a cable but has internal connections for the microphone audio and press to talk activation pairs. We’d still recommend using it with a Cloud amplifier though! You can find a full selection over on our Blaydon Communications website, or feel free to contact our sales team who will be happy to provide further assistance.
Product Features
- Integral PTT switch
- Single zone paging microphone
- Solid non-slip base
- Supplied with windshield
- Mic muted when not in use
- High quality dynamic mic mounted on 300mm gooseneck
- Internal cable connections with retention strap
- NO or NC contacts for external mic access on host zoner/amplifier
Product Specifications
- Weight: 430 g
- Mic Type Dynamic: Cardioid
- Mic PTT Switch Type: Momentary
- Mic Frequency Response: 80 Hz – 15 kHz
- Mic PTT Switch Contacts: NO and NC
- Mic Sensitivity: -54 dB ±3 dB (0 dB = 1 V/Pa at 1 KHz)
- Audio Balanced: 3.5 mm-pitch screw terminals
- Control NO/NC: 3.5 mm-pitch screw terminals
- Cable Access (Rear): 9 mm max. dia., internal retention
- Dimensions: Base: 150mm W x 43mm H x 150mm D / Gooseneck Length (inc capsule): 312 mm
Downloads
If available, product downloads will appear here.
User Guide
For CloudPM1 in PDF format
